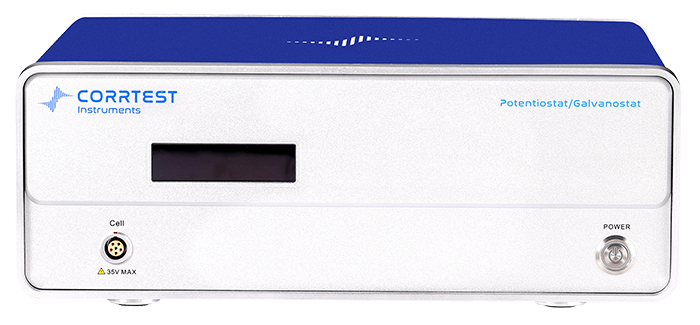

CS electrochemical workstation (potentiostat / galvanostat) contains a fast digital function generator, high-speed data acquisition circuitry, a potentiostat and a galvanostat. With high performance in stability and accuracy with advanced hardware and well-functioned software, it is a comprehensive research platform for corrosion, batteries, electrochemical analysis, sensor, life science and environmental chemistry etc.



Application
Reaction mechanism of Electrosynthesis, electrodeposition, anodic oxidation, etc;
Electrochemical analysis and sensor;
New energy materials (Li-ion battery, solar cell, fuel cell, supercapacitors), advanced functional materials, photoelectronic materials;
Corrosion study of metals in water, concrete and soil, etc;
Fast evaluation of corrosion inhibitor, water stabilizer, coating and cathodic protection efficiency.

Download：Single channel potentiostat galvanostat

Specifications
Support 2-, 3- or 4-electrode system	Potential and current range: Automatic
Potential control range: ±10V(can be customized to ±12V)	Current control range: ±2A
Potential control accuracy: 0.1%×full range±1mV	Current control accuracy: 0.1%×full range
Potential resolution: 10μV (>100Hz),3μV (<10Hz)	Current sensitivity:1pA
Rise time: <1μS (<10mA), <10μS (<2A)	Reference electrode input impedance:1012Ω||20pF
Current range: 2nA~2A, 10 ranges	Compliance voltage: ±21V
Maximum current output: 2A	CV and LSV scan rate: 0.001mV~10,000V/s
CA and CC pulse width: 0.0001~65,000s	Current increment during scan: 1mA@1A/ms
Potential increment during scan: 0.076mV@1V/ms	SWV frequency: 0.001~100 kHz
DPV and NPV pulse width: 0.0001~1000s	AD data acquisition:16bit@1 MHz,20bit@1 kHz
DA Resolution:16bit, setup time:1μs	Minimum potential increment in CV: 0.075mV
IMP frequency: 10μHz~1MHz	Low-pass filters: covering 8-decade
Operating System: Windows10/11	Interface: USB 2.0
Weight / Measurements: 6.5kg, 36.5 x 30.5 x16 cm
EIS (Electrochemical Impedance Spectroscopy)
Signal generator
Frequency range:10μHz~1MHz	AC amplitude:1mV~2500mV
DC Bias: -10~+10V	Output impedance: 50Ω
Waveform: sine wave, triangular wave and square wave	Wave distortion: <1%
Scanning mode: logarithmic/linear, increase/decrease
Signal analyzer
Integral time: minimum:10ms or the longest time of a cycle	Maximum:106 cycles or 105s
Measurement delay: 0~105s
DC offset compensation
Potential automatic compensation range: -10V~+10V	Current compensation range: -1A~+1A
Bandwidth: 8-decade frequency range, automatic and manual setting

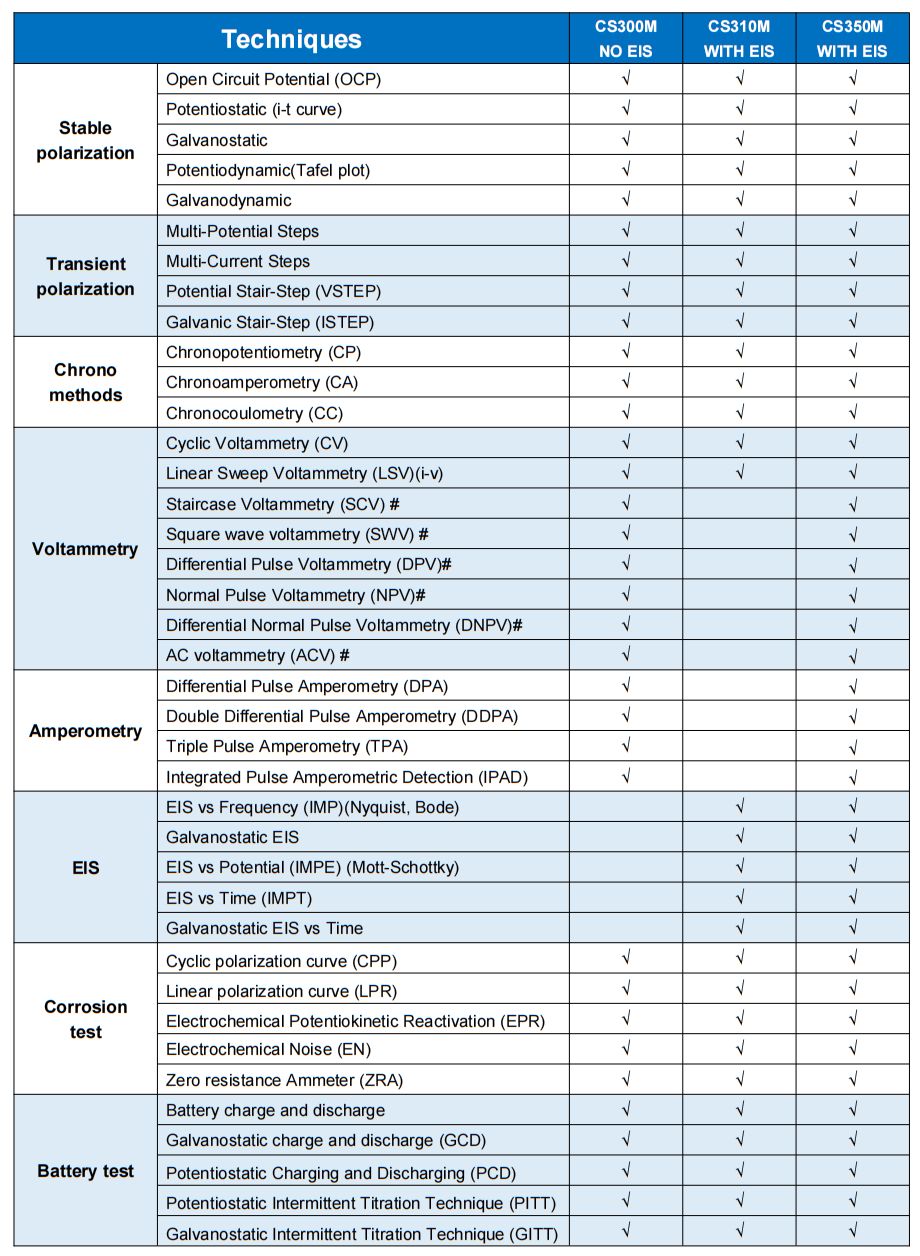

Electrochemical methods/Techniques (Models’ comparison)
Guidance:
Hardware specs and appearance are the same for various models, difference is in software part.

Model CS350M (with built-in EIS) is the most comprehensive model, includes all methods
Model CS310M (with built-in EIS) also includes EIS module. But it has less voltammetry methods compared with CS350M.
Model CS300M (without EIS) includes all techiques but EIS
